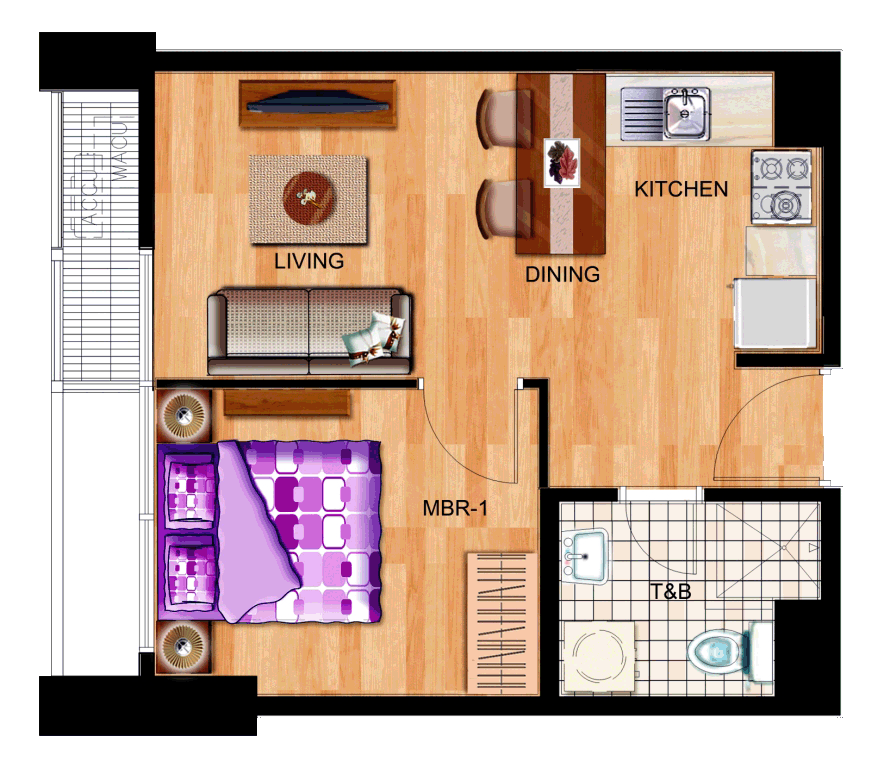

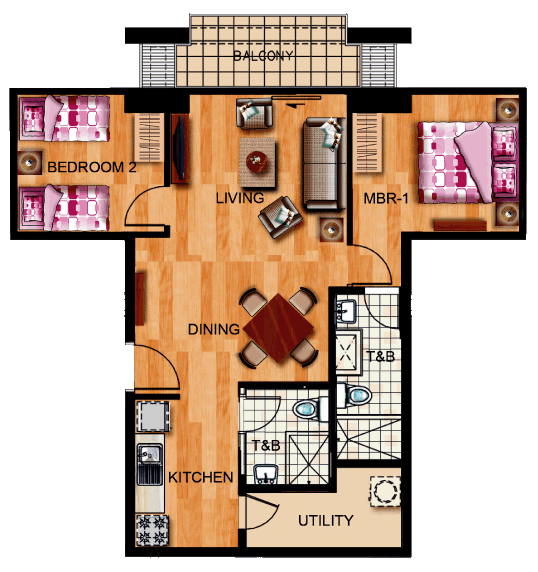

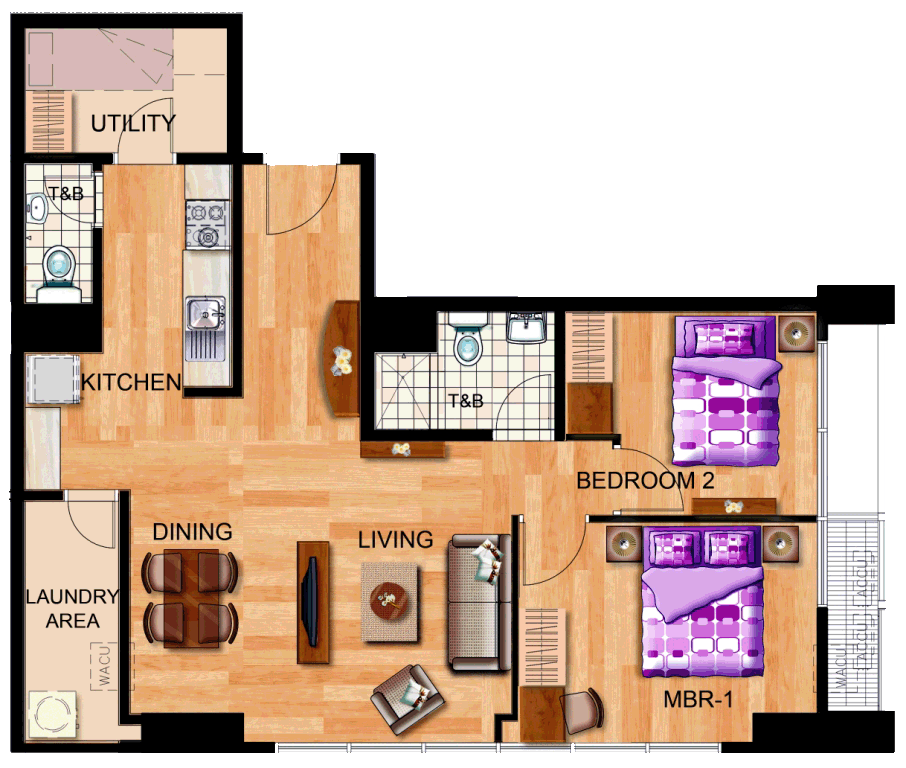

Floor Plan

Hallway Corridor

Lobby Entrance
- impressive grand entrance with view of the reflecting pool and landscape garden

Floor:   Ceramic Tiles
Wall:    Painted Plastic plaster
Ceiling: Painted Gypsum Board

Elevator Lobby

Floor:   Ceramic Tiles
Wall:    Painted Plastic plaster
Ceiling: Painted Gypsum Board

Function Room

Floor:   Ceramic Tiles
Wall:    Painted Plastic plaster
Ceiling: Painted Gypsum Board

Living / Dining / Bedrooms : Wood Flooring

Kitchen

(Enclosed Type)       : Ceramic Tiles
(Open Type)            : Wood Flooring
Utility / Maid's Room : Colored cement finish
Toilet & Bath           : Ceramic Tiles

KITCHEN AREA

. Kitchen Base Cabinet only
. Laminated doors on melamine carcass with China granite countertop and   100 mm high China granite splashboard

AIR CONDITIONING
- Provision for window type unit
- WACU opening with temporary glass enclosure
- Convenience outlet provision
- Provision for split-type
- Provision for pipe sleeve at external wall for refrigerant type
- Provision of FCU drain
- Provision of power circuit breaker at ACCU area

OTHER UNIT FEATURES
. MECHANICAL VENTILATION
   - Provision of mechanical exhaust / ventilation duct for kitchen and Toilet & Bath

. CLOSET
     - Bedroom closet provided with laminated doors on melamine carcass

UNIT HEIGHT
Unit Floor to Floor Height : 3.00 m.
Unit Floor to Underside of Slab : 2.75 m.
Kitchen Ceiling : 2.40 m.
Toilet and Bath : 2.20 m.

POWER SUPPLY

Generator
Common areas : 100% power supply back-up
Residential unit : min. of 30% power supply back-up

COMMUNICATION
. Provision for telephone lies
. Provision for Cable TV

MECHANICAL
Elevator :               2 passenger elevators, 1 passenger service elevator
Load Capacity :       900 kilos lift capacity (ave. 14-15 persons)
No. of Passengers : Transports average of 43 persons every 5 minutes
Speed :                 2.5 sec. floor to floor with 30-32 sec. waiting time only

FIRE PROTECTION / ALARM
- Water sprinkler system
- Fire alarm and detection system

CONCEALED TOILET PIPING

Advantages
. All plumbing pipework relevant to a particular apartment are kept within   that apartment.
. Vent piping will be drastically reduced.
. Eliminates occurrence of the following:
. Smell caused by tenant above.
. Drying of trap seal
. Leaks from exposed pipeworks.
. Maintenance will be confined within their own apartment, eliminating the need to disturb unit tenant below.
. Considerable cost reduction to the following (due to possible reduction of floor to floor height).
. Structural concrete and rebar.
